Diagram #10, TA-1/PT

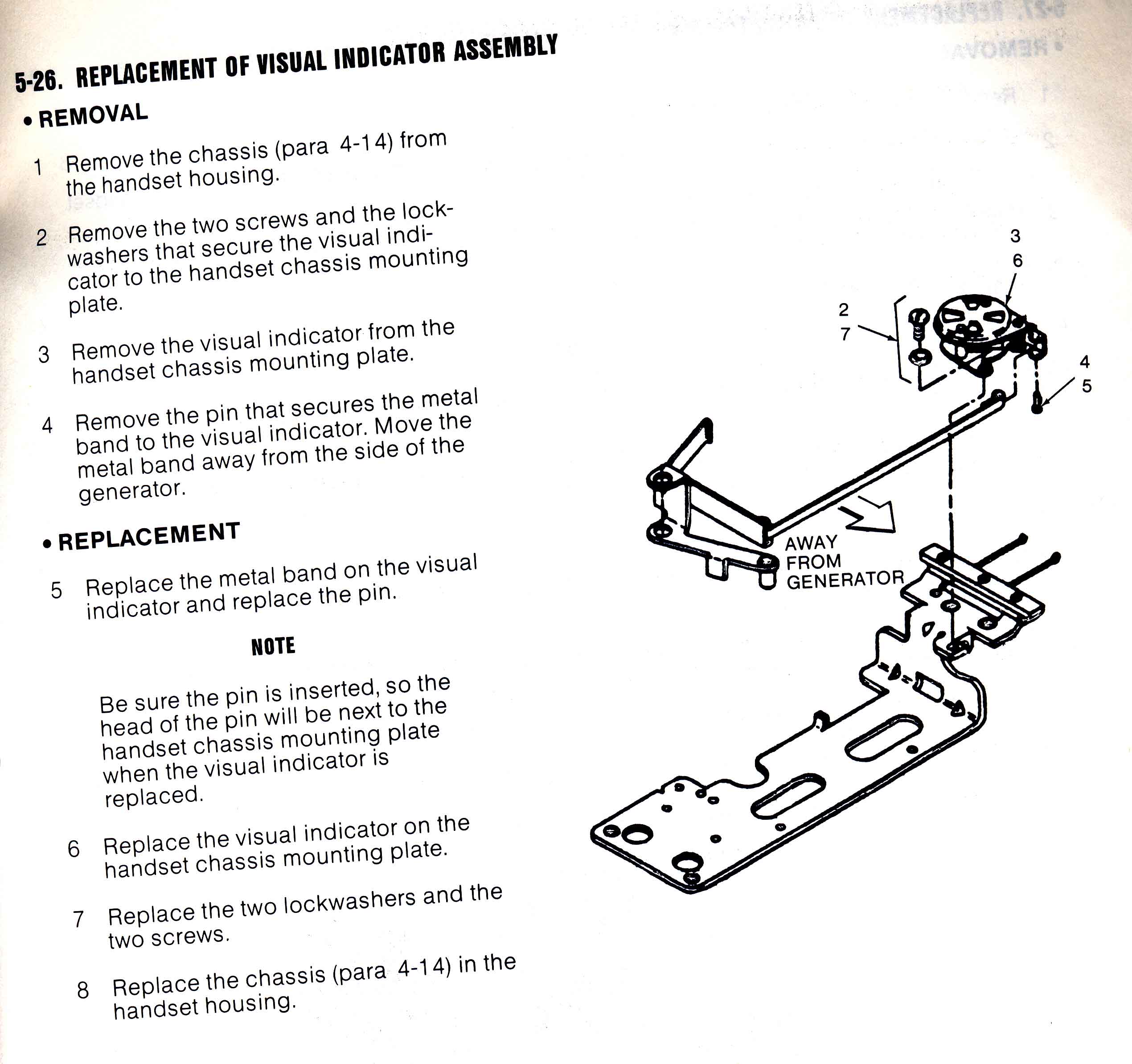

TA-1/PT Visual Indicator disassembly Instructions

Extract from TM 11-5805-243-13
(Headquarters, Department of the Army 15 September 1987)
Technical Manual for Organizational and
Operator's, Unit and Intermediate
and Direct Support Maintenance Manual

Visual Indicator disassembly instructions
