Parts listed on these diagrams are for both the TA-312/PT and the TA-312A/PT. When ordering please refer to the the corresponding part number next to the part.
Top Panel TA-312/PT
Top Panel TA-312A/PT

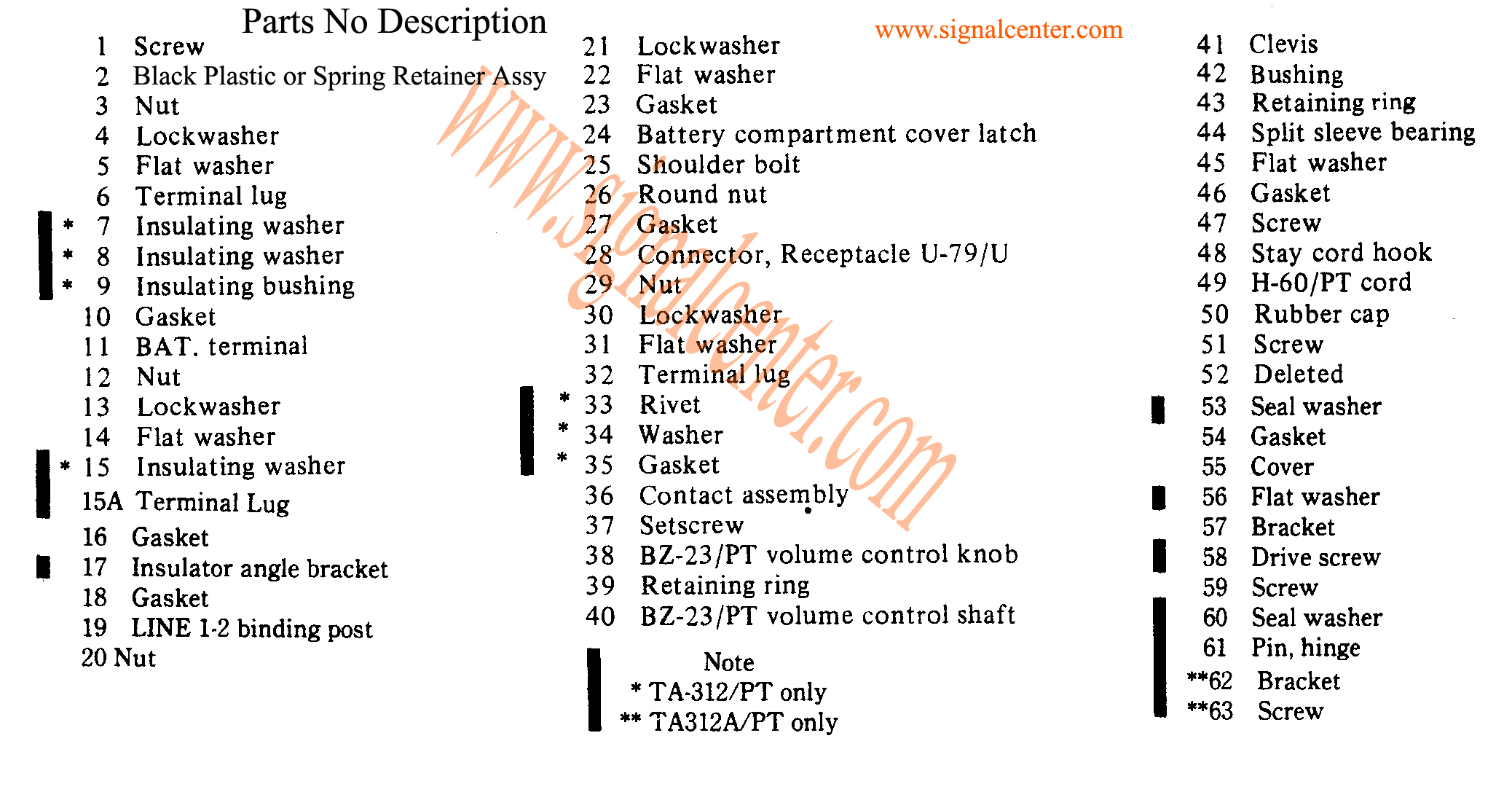

Parts Description and Reference Number.
