When ordering please refer to the the corresponding part number next to the part.

TA-312/PT ta-312a/pt H-60/PT Hand set

H-60/PT Handset Diagram

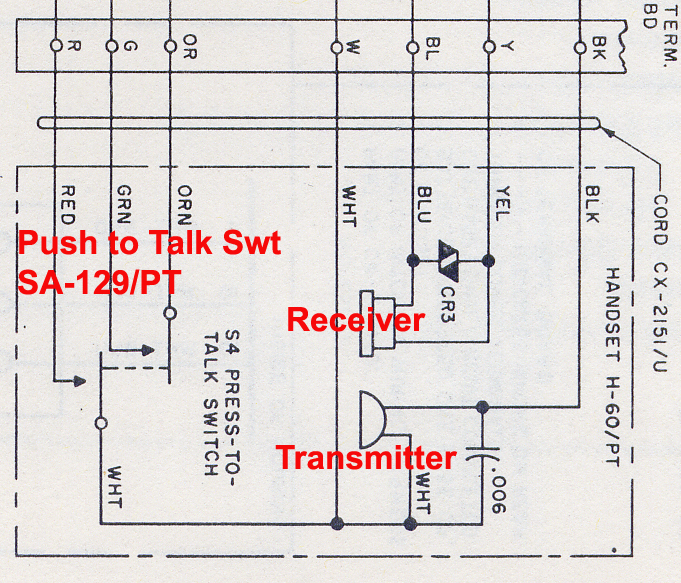

H-60/PT Handset Wiring Diagram H-60/PT Handset Wire Diagram
