CX-2151/U Electrical Cord Assembly for H-60/PT Handset
for TA-312/PT and TA-43/PT Field Telephones
Price: $14.95
New Mint Condition: Brand New, never used H-60/PT CX-2151/U Electrical Cord Assembly for both the TA-43/PT ta-43, ta43, or the TA-312/PT ta-312, ta43 mititary field telephone. Difficult to find replacement item.
Shipping Costs: $2.90 for Economy Standard USPS shipping of 3-8 Days. Will accept combined shipping.

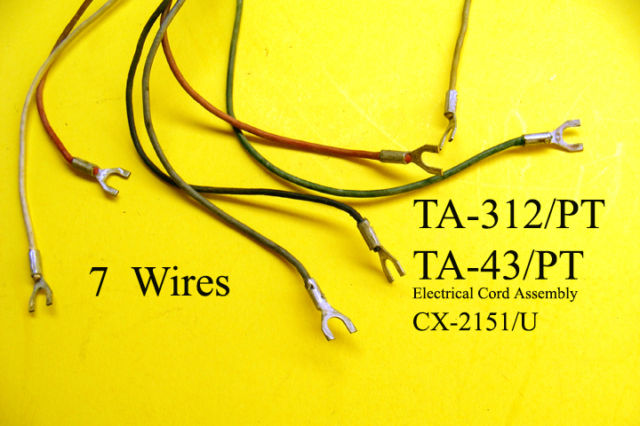

Item 18: CX-2151/U Electrical Cord Assembly
NSN 5930-504-9486

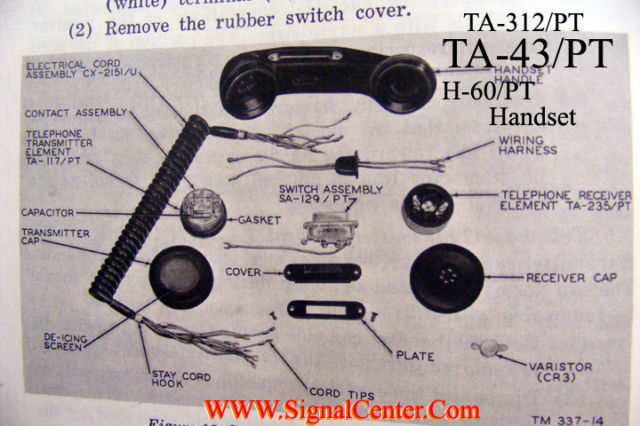

Replacing the CX-2151/U Electrical Cord Assembly on a Handset:
To replace the cord/coil I would suggest to pat/rub a little WD-40 lightly on the cable insertion ends to facilitate squeezing them in the tiny holes on the telephone H-60 handset and the compartment unit. Follow the color code markings on the black terminal board and on the handset H-60's Transmitter end. Notice that the Red, Orange and Green on one end of the cord are longer -- use this end for the Transmitter end of the H-60. Those three longer wires will be connected to the Push-To-Talk Switch, as you will see when you disassemble it. If you have an easier method, by all means please let me know.
|
|
